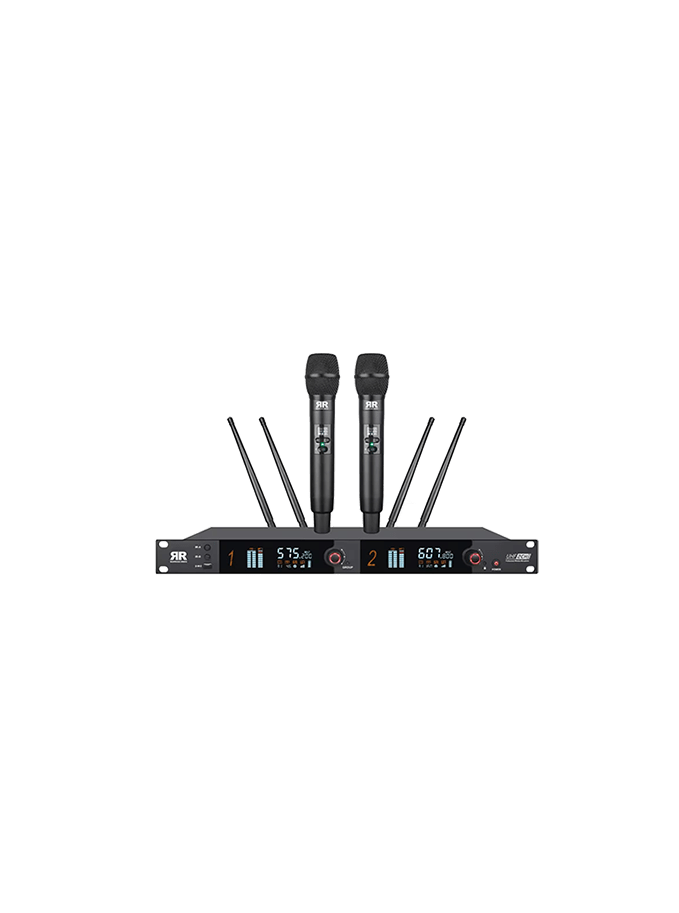

RR-1U2 Wireless Microphone System for Crystal-Clear Signals
The RR-1U2 Wireless Microphone System is equipped with dual channel true diversity receiving technology Each microphone signal is equipped with two sets of receiving circuits to simultaneously receive signals, effectively enhancing signal stability
Using a color display screen to show the RF/audio/battery level/SQ distance/locking status of each channel microphone High end practicality
This system comes standard with independently adjustable operating frequency and volume SQ is independently adjustable IR infrared independent control Independent frequency search function One click independent locking Practical functions such as one click grouping and retrieval
The RR-1U2 comes standard with 8 sets of stacking frequencies that can be called upon Provide convenient installation support for using 1-8 sets of systems simultaneously in the same location The circuit board power supply has a built-in working mode inductor, which can reduce the electromagnetic interference of the power supply
The standard phase locking circuit, combined with noise suppression control and digital pilot technology, when the transmitter is turned off, the pilot control circuit silences the receiver AF signal to suppress noise, ensuring effective blocking of interference signals
The RR-1U2 Wireless Microphone System is equipped with dual channel true diversity receiving technology Each microphone signal is equipped with two sets of receiving circuits to simultaneously receive signals, effectively enhancing signal stability
Using a color display screen to show the RF/audio/battery level/SQ distance/locking status of each channel microphone High end practicality
This system comes standard with independently adjustable operating frequency and volume SQ is independently adjustable IR infrared independent control Independent frequency search function One click independent locking Practical functions such as one click grouping and retrieval
The RR-1U2 comes standard with 8 sets of stacking frequencies that can be called upon Provide convenient installation support for using 1-8 sets of systems simultaneously in the same location The circuit board power supply has a built-in working mode inductor, which can reduce the electromagnetic interference of the power supply
The standard phase locking circuit, combined with noise suppression control and digital pilot technology, when the transmitter is turned off, the pilot control circuit silences the receiver AF signal to suppress noise, ensuring effective blocking of interference signals
The RR-1U2 Wireless Microphone System is equipped with dual channel true diversity receiving technology Each microphone signal is equipped with two sets of receiving circuits to simultaneously receive signals, effectively enhancing signal stability
Using a color display screen to show the RF/audio/battery level/SQ distance/locking status of each channel microphone High end practicality
This system comes standard with independently adjustable operating frequency and volume SQ is independently adjustable IR infrared independent control Independent frequency search function One click independent locking Practical functions such as one click grouping and retrieval
The RR-1U2 comes standard with 8 sets of stacking frequencies that can be called upon Provide convenient installation support for using 1-8 sets of systems simultaneously in the same location The circuit board power supply has a built-in working mode inductor, which can reduce the electromagnetic interference of the power supply
The standard phase locking circuit, combined with noise suppression control and digital pilot technology, when the transmitter is turned off, the pilot control circuit silences the receiver AF signal to suppress noise, ensuring effective blocking of interference signals
The operating frequency range of the system is 564~615MHz. Each channel is equipped with 100 adjustable frequency points Two channels with a total of 200 adjustable frequency points Frequency library design
As follows:
MIC-1 operating frequency: 564-588.5 MHz channels: CH01-CH100
MIC-2 operating frequency: 590-615MHz channels: CH101-CH200
Receiver technical specifications:
RF stability: ± 0.005% (-10~50 ℃)
Carrier frequency: UHF564~615MHz
Frequency width: 50MHz
Operation mode: manual adjustment
Sensitivity: At an offset of 25KHz. When inputting -95dBm, S/N＞80Db
Comprehensive T.H.D:<0.5% @ 1KHz
Frequency response: 60Hz~15KHz
Maximum output voltage: 0dbV@45KHz
Output sockets: XLR balanced and 6.3 unbalanced
Mute control mode: dual mute control of audio code and noise
Effective working distance: about 50-250 meters under ideal working conditions
Working voltage: DC12V/1000mA
Technical specifications of transmitter:
Tube material: All aluminum metal tube body or aluminum shell collar clip
Carrier frequency band: UHF564~615MHz
Band width: 50MHz
Frequency adjustment: infrared frequency matching/manual adjustment
Output power: 30mW
Harmonic radiation: ＜ 55dBc
Handheld audio head: dynamic/lavalier and conference: capacitive
Battery usage: Two No. 5 batteries
Operation display: LCD displays battery capacity and channels simultaneously
